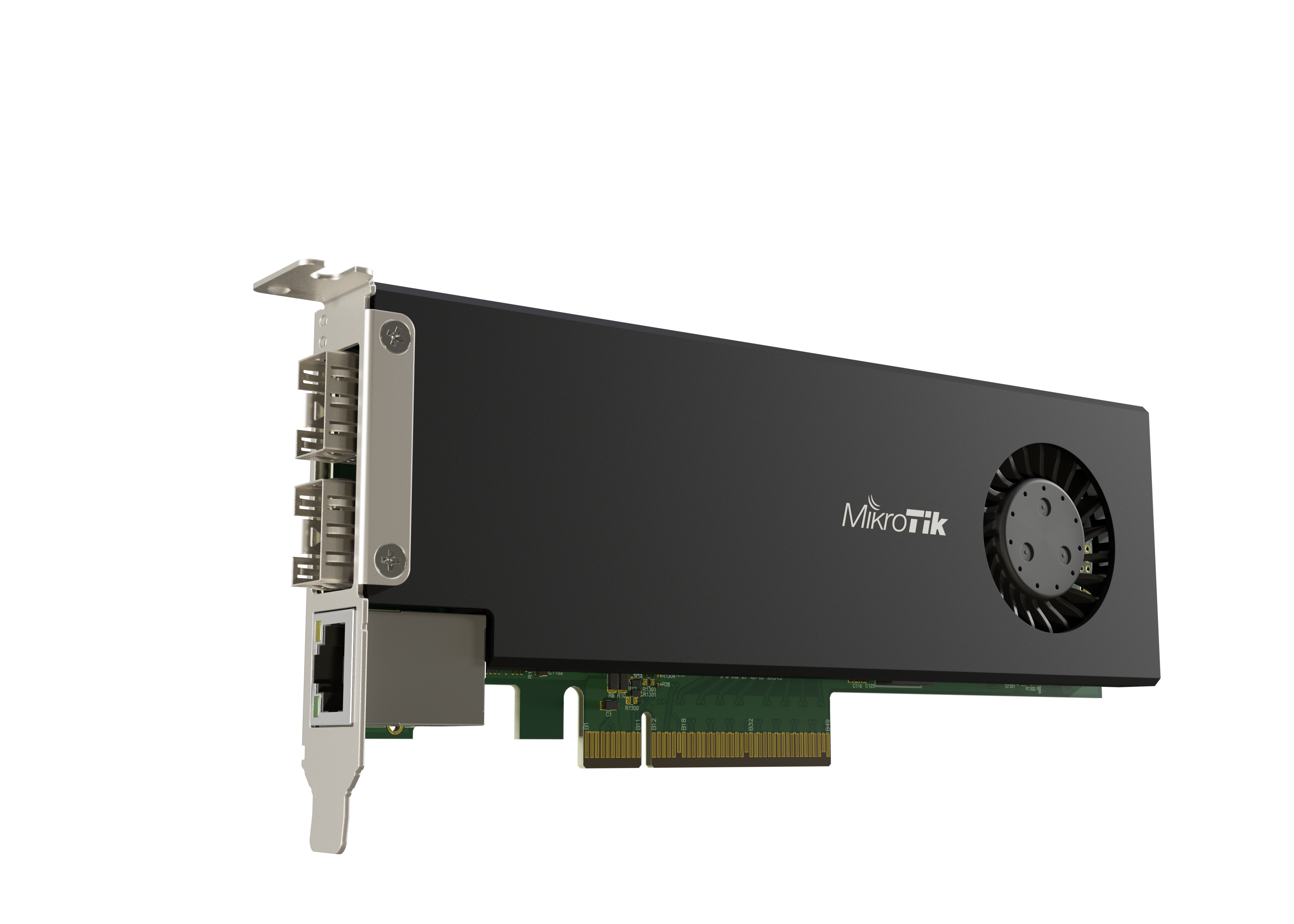

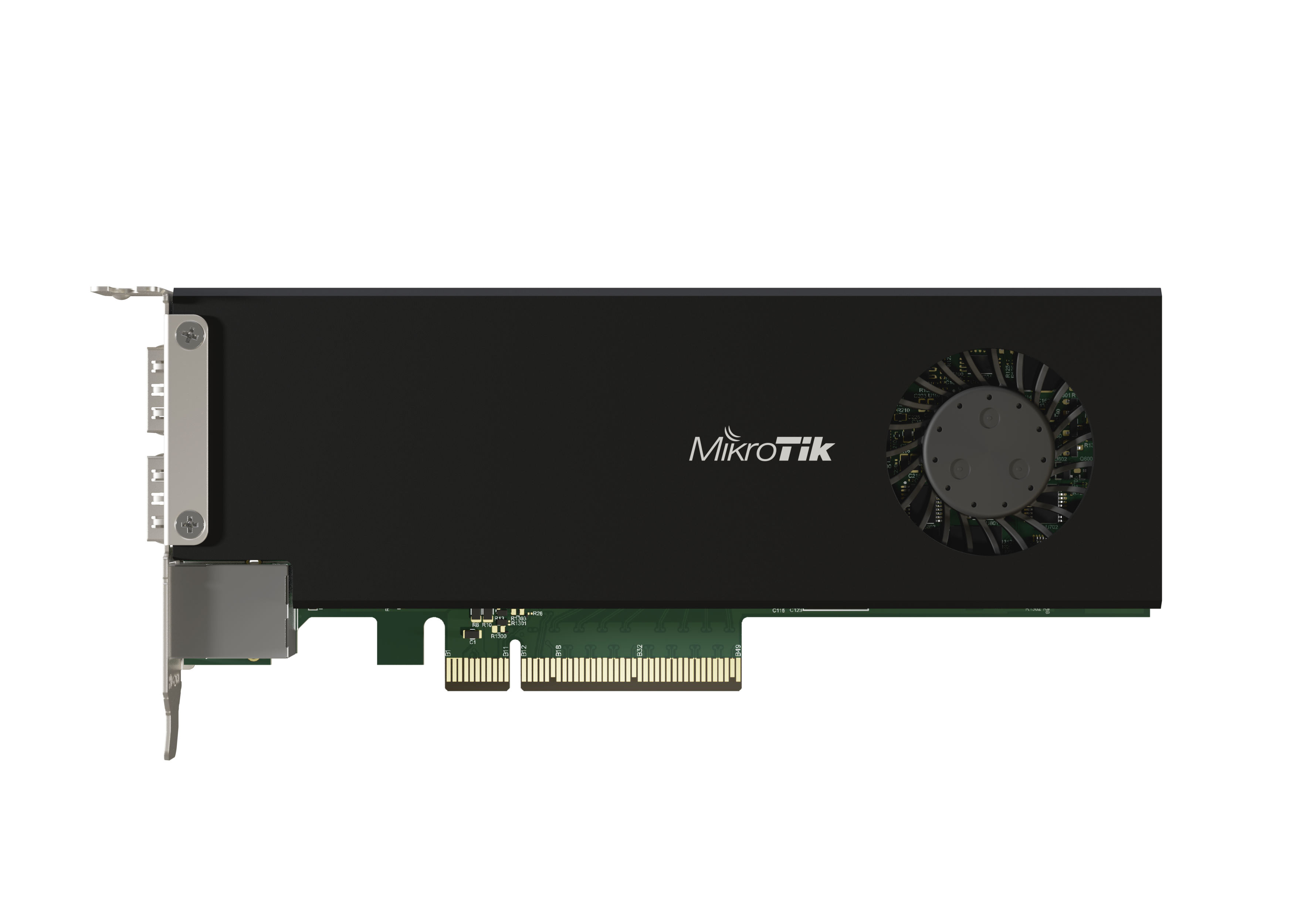

MikroTik CCR2004-1G-2XS-PCIe – Ethernet router
KSh 79,600.00
A smart PCIe network interface card that
adds full-fledged router capabilities to your servers. The smart and easy way
to create 25 Gigabit networks if you want to save space in your server room!
Save space in your server room by adding
a real CCR2004.. within the server itself! This unique product combines a
simple 2x 25 Gigabit PCIe Ethernet adapter with the impressive capabilities
of a fully-fledged router. By default,
the PCIe interface will show up as four virtual Ethernet interfaces. Two
interfaces in passthrough mode to the 25G SFP28 cages. Remaining two virtual
Ethernet-PCIe interfaces are bridged with the Gigabit Ethernet port for
management access. The user can configure all interfaces and settings freely
since we are running fully functional RouterOS here. To get this CCR device to work as an NIC, a
new Passthrough mode was implemented. Basically, a FastForward FastPath mode
that can also pass hardware link statuses.
This NIC can reach wire-speed (100Gbps) with Jumbo frames. It ensures
that in most server setups this CCR network card will not be the bottleneck. With 4 GB of RAM, 128 MB of NAND storage,
and a powerful quad-core ARMv8 64-bit CPU, this device can handle a lot:
firewalls, user management and access control for home media and file
servers, and even some traffic control in data centers – without the need for
a stand-alone router. This form-factor
does come with certain limitations that you should keep in mind. The CCR NIC
card needs some time to boot up compared to ASIC-based setups. If the host
system is up before the CCR card, it will not appear among the available
devices. You should add a PCIe device initialization delay after power-up in
the BIOS. Or you will need to re-initialize the PCIe devices from the HOST
system. We are looking forward to see
your unique use-cases for this unconventional device: a simple high-speed
networking card combined with a powerful Cloud Core Router. Unleash the potential of your server with
the fierce power of RouterOS!
Specifications Gallery Test results Specifications CCR2004-1G-2XS-PCIe
Architecture ARM 64bit CPU AL52400 CPU core count 4 CPU nominal
frequency 1500 MHz Dimensions 170 x 69 x 18 mm RouterOS license 6 Operating
System RouterOS v7 Size of RAM 4 GB Storage size 128 MB Storage type NAND
MTBF Approximately 200’000 hours at 25C Tested ambient temperature -20°C to
60°C IPsec hardware acceleration Yes Suggested price $199.00 Powering Details
Max power consumption 29 W Max power consumption without attachments 22 W
Cooling type 1 fan Ethernet Details 10/100/1000 Ethernet ports 1 Fiber
Details Number of 25G SFP28 ports 2 Other Details CPU temperature monitor Yes
Current Monitor Yes PCB temperature monitor Yes Voltage Monitor Yes
Certification & Approvals Details Certification CE, EAC, ROHS IP 20
Included parts Small bracket Large bracket The device has an operating system
preinstalled and licensed. No separate purchase is necessary and the product
is ready to use. The device includes free software updates for the life of
the product or a minimum of 5 years starting from date of purchase..
