MikroTik KNOT – Wireless for home and office
KSh 39,600.00
IoT Gateway for the most versatile and
cost-effective setups
The newest addition to the MikroTik IoT
product family – KNOT – is a truly universal device with exceptional
connectivity options and protocol support. It is an IoT Gateway that uses
Narrow Band and CAT-M technology. Because of the low cost, low bandwidth
cellular connection, it is supported by countless mobile operators around the
globe. KNOT can monitor onboard GPIOs,
convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP
network via HTTPS and MQTT. You can
use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a
Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors,
such as electricity meters and relays.
It could be used as a backup connection for the Ethernet or as a
management channel for your network. NB/CAT-M monthly plan is much cheaper
than LTE. Why spend extra money on bandwidth you don’t need? For example, you
can manage a KNOT-powered vending machine with temperature and liquid sensors
with only a few megabytes per day!
KNOT features so many protocol support and connectivity options: 2.4 GHz wireless, Bluetooth, GPS, 2x 100
Mbps Ethernet ports with PoE-in and PoE-out, Micro-USB. Maximum convenience
at the lowest cost! With the Bluetooth
interface, you can use the KNOT for asset tracking and telemetry based on
Bluetooth advertisement packets. KNOT supports any BLE tag that sends
advertisement data. iBeacon, Eddystone or any other format. It has powerful filters for forwarding only
relevant packets and ignoring others.

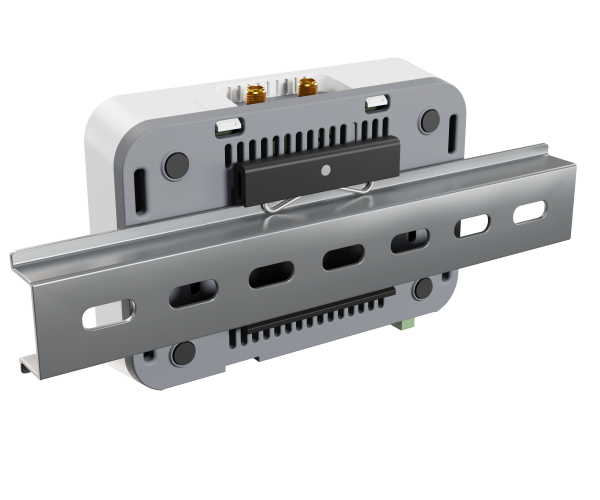

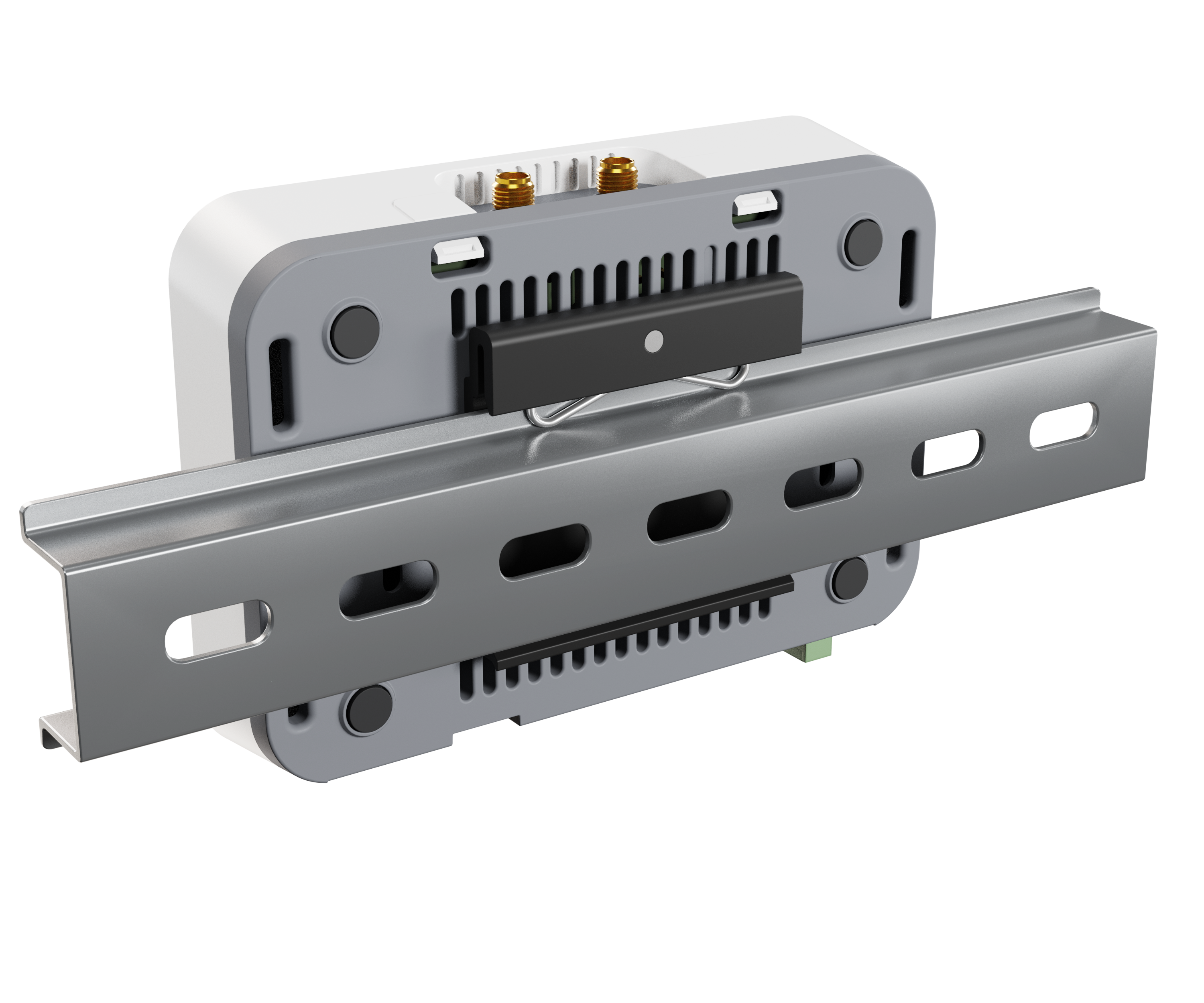

KNOT is a great tool for most outdoor cabinet IoT applications as
well. It comes with a DIN rail mount that allows easy integration with all
kinds of setups: from agriculture and asset tracking to cold chain
monitoring, industrial manufacturing, and so on. Bring flexible low-cost connectivity to the
most remote or tricky areas with the MikroTik KNOT! Specifications Gallery
Test results Specifications RB924i-2nD-BT5&BG77
Architecture MIPSBE CPU QCA9531 CPU core count 1 CPU nominal frequency 650
MHz Switch chip model QCA9531 Dimensions 122 x 87 x 26 mm RouterOS license 4
Operating System RouterOS Size of RAM 64 MB Storage size 128 MB Storage
type NAND MTBF Approximately 100’000 hours at 25C Tested ambient
temperature -40°C to 70°C Suggested price $99.00 Powering Details MicroUSB
input Voltage 5 V Number of DC inputs 3 (DC jack, PoE-IN, MicroUSB) DC jack
input Voltage 12-57 V Max power consumption 18 W Max power consumption
without attachments 5 W Cooling type Passive PoE in 802.3af/at PoE in input
Voltage 18-57 V PoE-out Details PoE-out ports Ether2 PoE out Passive PoE up
to 57V Total output power 12 Wireless specifications Details Wireless 2.4 GHz
Max data rate 300 Mbit/s Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz
standards 802.11b/g/n Antenna gain dBi for 2.4 GHz 1.5 Wireless 2.4 GHz chip
model QCA9531 Wireless 2.4 GHz generation Wi-Fi 4 Ethernet Details 10/100
Ethernet ports 2 Peripherals Details Number of SIM slots 1 Modem (Nano SIM)
Serial console port RS485 Number of USB ports 1 USB slot type microUSB type
AB Max USB current (A) 1 Other Details PCB temperature monitor Yes Voltage
Monitor Yes Bluetooth version 5.2 Bluetooth RF connector type uUFL
Certification & Approvals Details Certification CE, FCC, IC, EAC, ROHS
IP IP20 Wireless specifications 2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96 11MBit/s 22 -89 6MBit/s 20 -93 54MBit/s 18 -74 MCS0 20 -93
MCS7 16 -71 Included parts 24V 1.2A
power adapter K-47 wall mount set USB OTG cable DIN rail mount set The device has an operating system
preinstalled and licensed. No separate purchase is necessary and the product
is ready to use. The device includes free software updates for the life of
the product or a minimum of 5 years starting from date of purchase..
