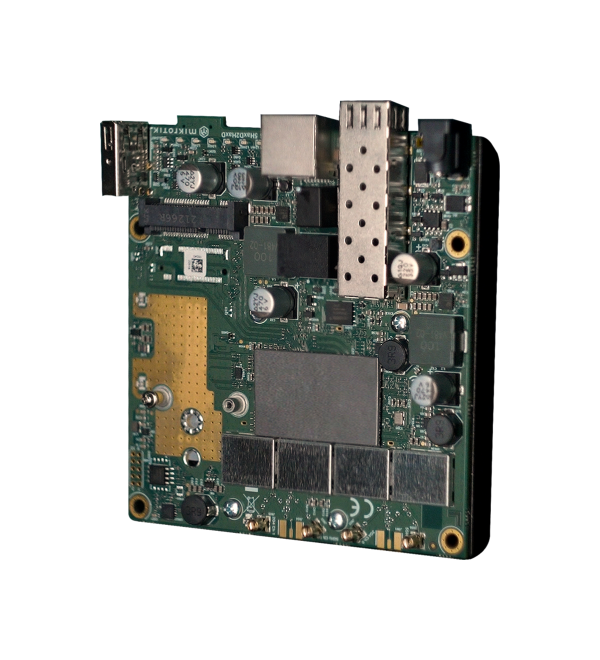

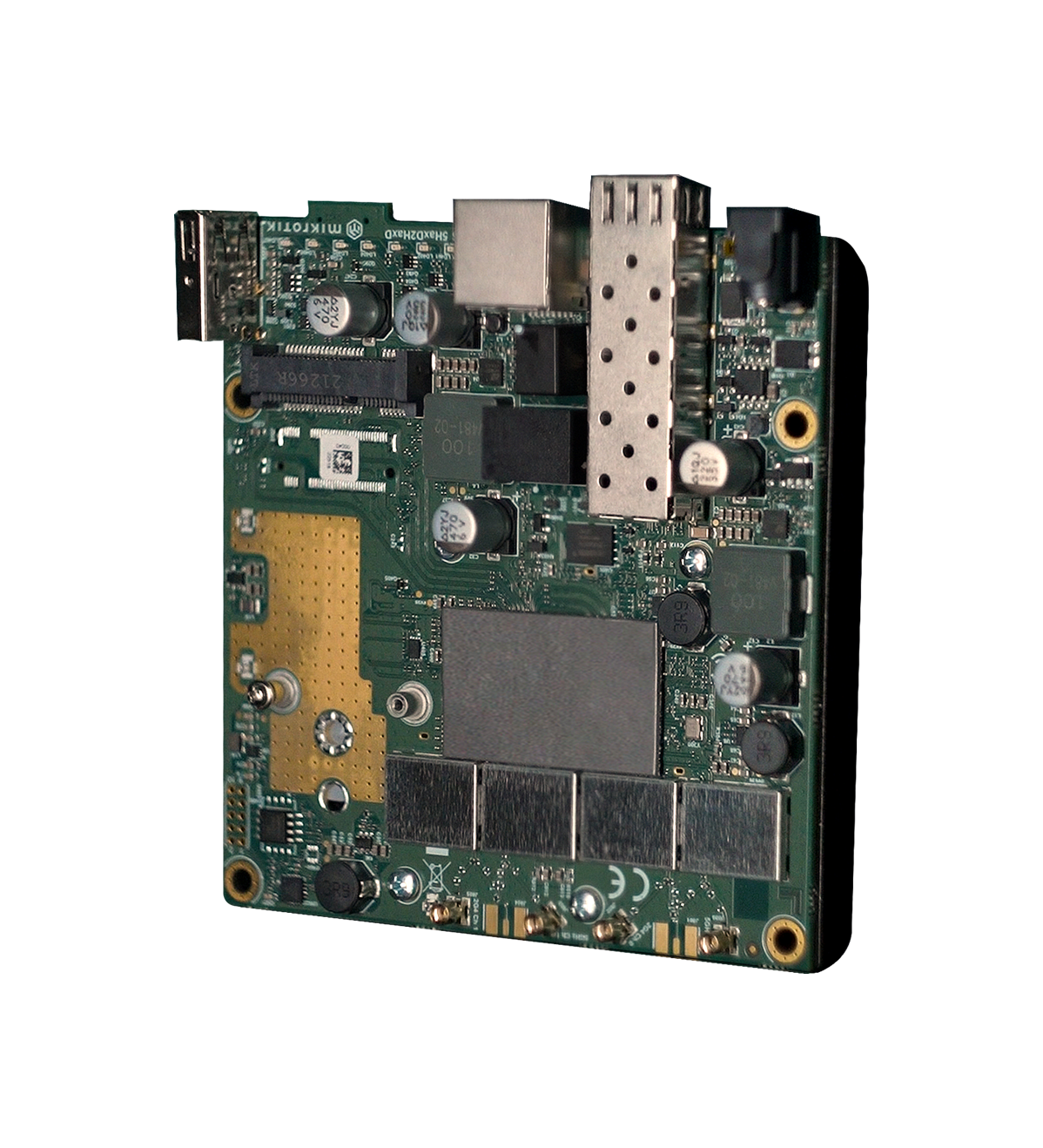

MikroTik L23UGSR-5HaxD2HaxD – RouterBOARD
KSh 39,600.00
Build your own custom outdoor Wi-Fi 6
access point or CPE! This modular wireless router comes with handy MMCX
connectors, allowing you to create versatile omnidirectional access points
and powerful point-to-point links.
Remember the thrill of crafting your
custom solutions with our RouterBoard series? Get ready for even more DIY
achievements: we’re refreshing the RB product line with Wi-Fi 6! The new L23UGSR is a dual-band Wi- Fi 6
upgrade of the popular RB922 DIY router. You can use it to build custom
low-cost outdoor access points or CPEs – for your home, office, homelab needs
or even to launch your own products, such as smart vending machines or ticket
stations! Thousands of people across the globe choose the RouterBOARD series
to build their products because MikroTik offers no subscriptions, no
paywalls, no weird licensing or royalty deals… You buy it – you own
it! This modular board features a
modern Qualcomm Maple CPU based on the ARM architecture, a USB port for extra
storage or other needs, Gigabit Ethernet with PoE-in, 2.5 Gigabit SFP for
fiber connectivity, and a free miniPCIe slot that allows further
customization. You could, for example, add an LTE modem for a mobile internet
backup – we’ve added a NanoSIM slot on the bottom! But there are other
options, like adding a gateway for LoRa IoT setups, such as our
R11e-LR8! A powerful dual-band,
dual-chain Wi-Fi 6 radio offers increased speed, stability, security,
roaming, power management, and other features, compared to the previous
wireless protocols for distances up to 30 kilometers.* The four MMCX connectors enable further
customization with an endless variety of antennas you could use. Add a
HGO-antenna-OUT and you’ve got yourself an excellent omnidirectional AP… or
try the mANT30 PA antenna to create a powerful long-range point-to-point
link! If you’ve read this far, here’s
a little bonus feature: we’ve kept the good old beeper for various alarms or
creative outputs. *It’s important to
note that while longer links are feasible, their reliability may vary.
Additionally, the distance achievable greatly depends on the antenna selected
for use. Specifications Gallery
Test results Specifications L23UGSR-5HaxD2HaxD Architecture ARM
CPU IPQ-5010 CPU core count 2 CPU nominal frequency 800 MHz RouterOS
license 4 Operating System RouterOS v7 Size of RAM 256 MB Storage size 128 MB
Storage type NAND MTBF Approximately 100’000 hours at 25C Tested ambient
temperature -40°C to 70°C Suggested price $99.00 Powering Details Number of
DC inputs 2 (DC jack, PoE-IN) DC jack input Voltage 12-28 V Max power
consumption 25 W Max power consumption without attachments 12 W Cooling
type Passive PoE in Passive PoE PoE in input Voltage 18-28 V Wireless
specifications Details Wireless 2.4 GHz Max data rate 574 Mbit/s Wireless 2.4
GHz number of chains 2 Wireless 2.4 GHz standards 802.11b/g/n/ax Wireless 2.4
GHz chip model IPQ-5010 Wireless 2.4 GHz generation Wi-Fi 6 Wireless 5 GHz
Max data rate 2400 Mbit/s Wireless 5 GHz number of chains 2 Wireless 5 GHz
standards 802.11a/n/ac/ax Wireless 5 GHz chip model QCN-6102 Wireless 5 GHz
generation Wi-Fi 6 Ethernet Details 10/100/1000 Ethernet ports 1 Fiber
Details SFP ports 1 (2.5G supported) Peripherals Details Number of SIM
slots 1 Modem (Nano SIM) MiniPCI-e slots 1 Number of USB ports 1 USB Power
Reset Yes USB slot type USB type A Max USB current (A) 1.5 Other Details PCB
temperature monitor Yes Voltage Monitor Yes Beeper Yes Certification &
Approvals Details Certification CE, FCC, IC, ROHS Wireless specifications 2.4
GHz Transmit (dBm) Receive Sensitivity 1MBit/s 27 -100 11MBit/s 27 -94
6MBit/s 29 -96 54MBit/s 27 -80 MCS0 29 -96 MCS7 26 -75 MCS9 24 -70
MCS11 22 -67 5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 28 -96
54MBit/s 26 -80 MCS0 28 -96 MCS7 25 -75 MCS9 23 -70 MCS11 20 -67 The device has an operating system
preinstalled and licensed. No separate purchase is necessary and the product
is ready to use. The device includes free software updates for the life of
the product or a minimum of 5 years starting from date of purchase.. Related products CA411-711 $15.00
ACMMCXRPSMA $9 HGO-antenna-OUT $9
mANT30 PA $219 SAW30-240-1200GR2A $12
RBGPOE-CON-HP $30 APA-1
$29 18POW $9.00
RBGPOE $8.00 SAW30-240-1200GA $12
