MikroTik LDF 5 – Wireless system
KSh 19,600.00
Dual chain 5GHz system for long distance
links with satellite offset dish antennas

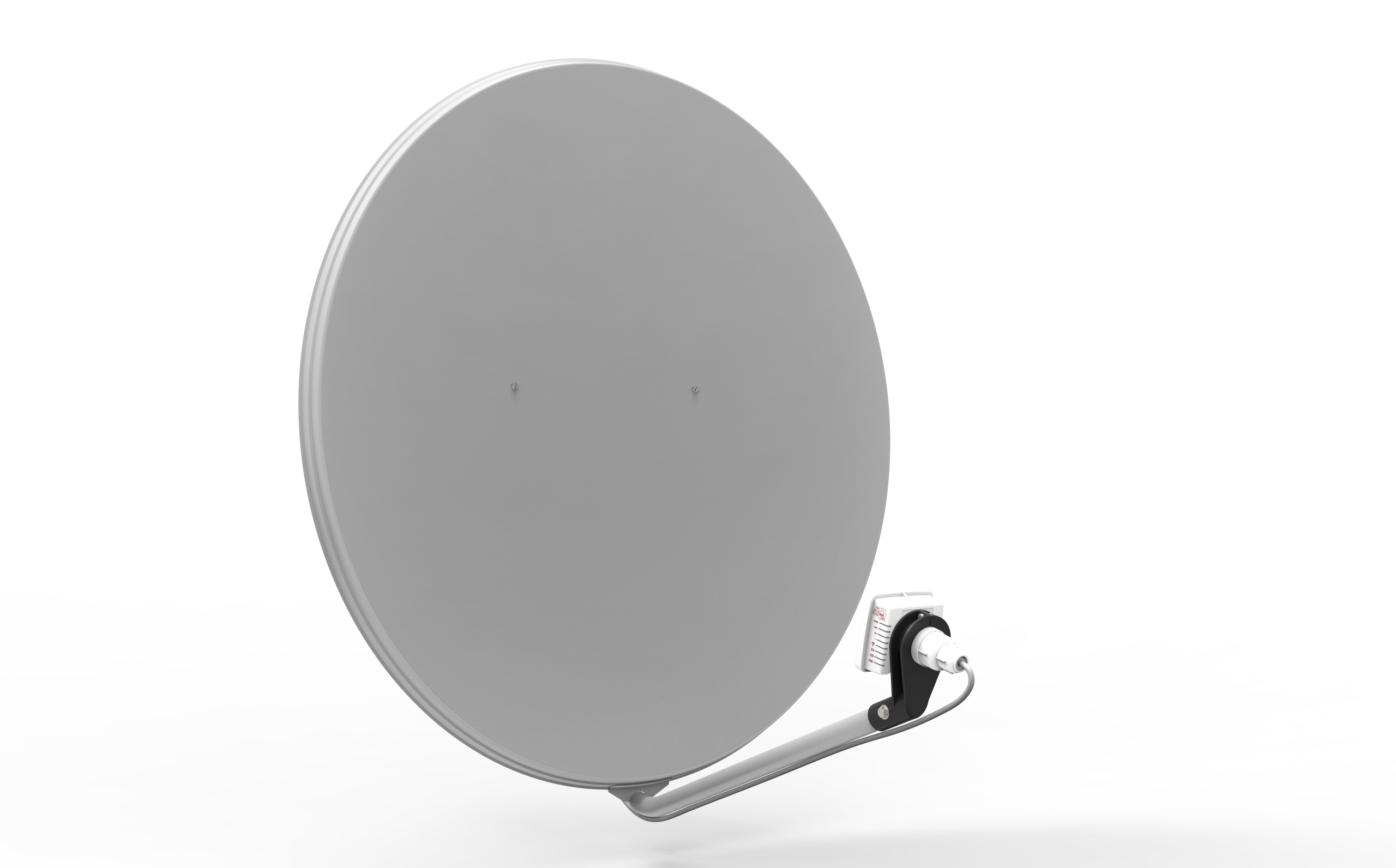

The LDF (Lite Dish Feed) is an outdoor
wireless system with a built in antenna, meant to be installed on satellite
offset dish antennas. The dish will act as a reflector, amplifying the
signal. This means you can use any
available satellite TV dish with an offset mount to quickly deploy powerful
long range wireless links. The offset mount is universal at 40mm diameter,
and the LDF can easily be placed inside it. Since the LDF itself is a tiny
little package, it makes shipping and deployment simple and low cost. Using a dish of up to 100cm in diameter, it
is possible to obtain antenna amplification of up to 33dBi. The device comes
preinstalled with RouterOS and is ready to use. – LDF 5 US (USA) is factory locked for
5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. – LDF 5 (International) supports
5150MHz-5875MHz range (Specific frequency range can be limited by country
regulations).
Specifications Gallery Test results Specifications RBLDF-5nD
Architecture MIPSBE CPU AR9344 CPU core count 1 CPU nominal frequency 600 MHz
Dimensions 84x84x115mm RouterOS license 3 Operating System RouterOS Size of
RAM 64 MB Storage size 16 MB Storage type FLASH MTBF Approximately 100’000
hours at 25C Tested ambient temperature -40°C to 70°C Suggested price $49.00
Powering Details Number of DC inputs 1 (PoE-IN) Max power consumption 6 W
Cooling type Passive PoE in Passive PoE PoE in input Voltage 10-30 V Wireless
specifications Details Wireless 5 GHz Max data rate 300 Mbit/s Wireless 5 GHz
number of chains 2 Wireless 5 GHz standards 802.11a/n Antenna gain dBi for 5
GHz 9 Wireless 5 GHz chip model AR9344 Wireless 5 GHz generation Wi-Fi 4
Ethernet Details 10/100 Ethernet ports 1 Certification & Approvals
Details Certification CE, FCC, IC, EAC, ROHS IP IP54 Wireless specifications
5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 25 -96 54MBit/s 20 -80
MCS0 25 -96 MCS7 19 -75 Included parts
24V 0.38A power adapter PoE
injector The device has an operating
system preinstalled and licensed. No separate purchase is necessary and the
product is ready to use. The device includes free software updates for the
life of the product or a minimum of 5 years starting from date of
purchase.. Related products
