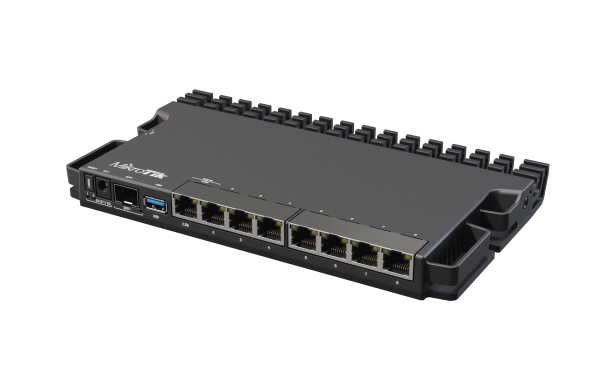

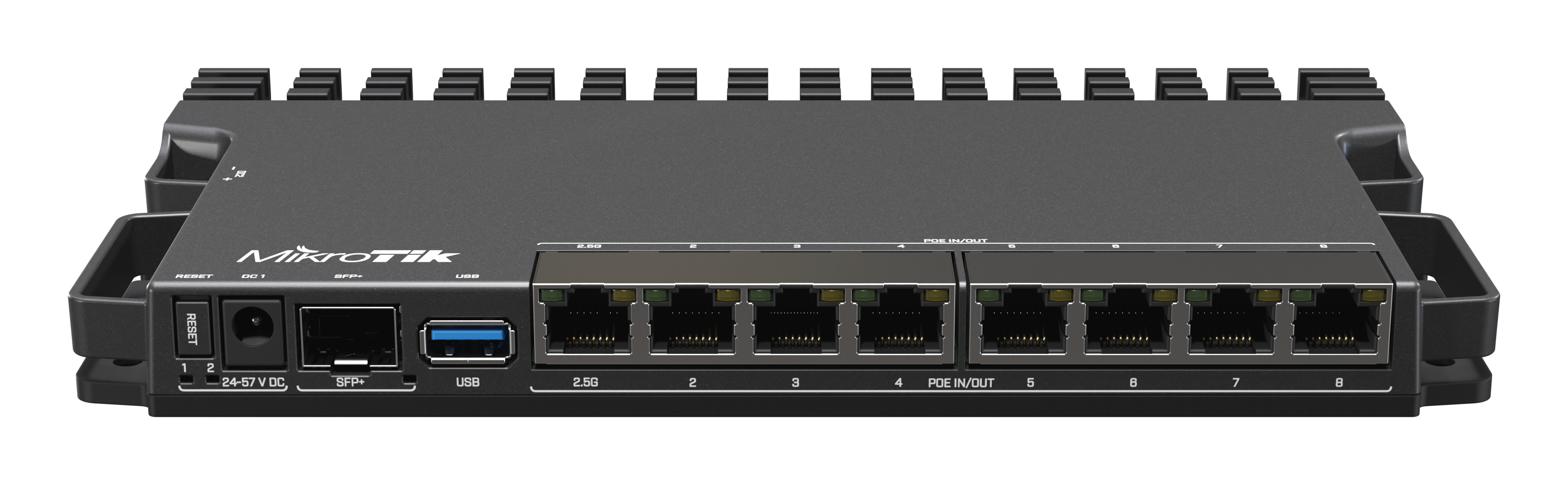

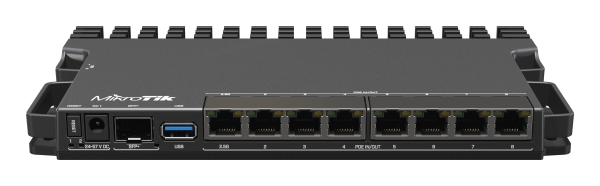

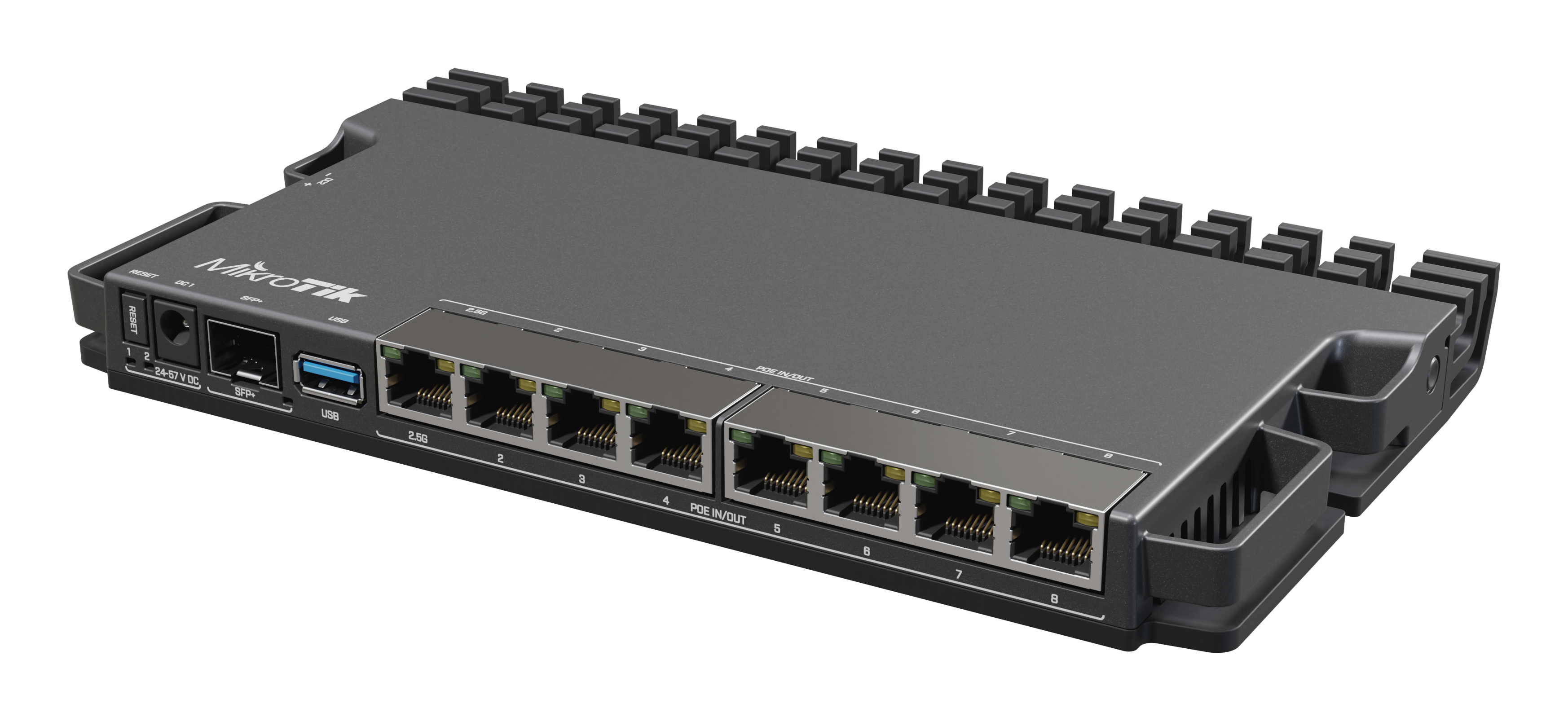

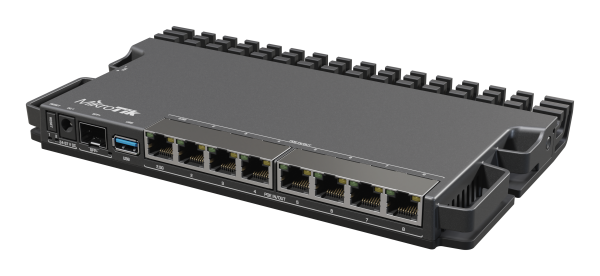

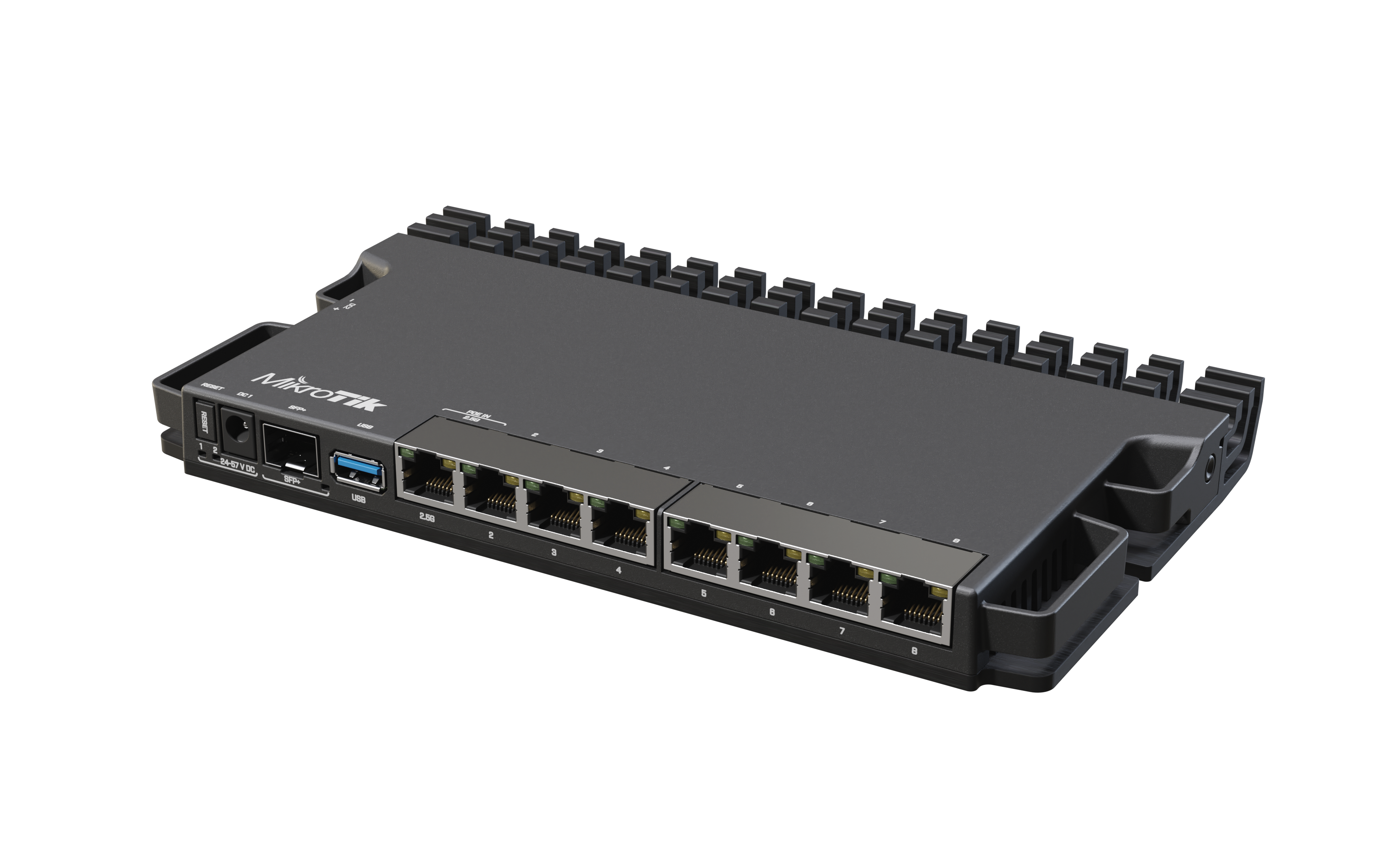

MikroTik RB5009UPr+S+IN – Ethernet router
KSh 119,600.00
A new version of our popular heavy-duty
RB5009 router with PoE-in and PoE-out on all ports. Perfect for small and
medium ISPs. 2.5 Gigabit Ethernet & 10 Gigabit SFP+, numerous powering
options.
It’s all about the power… This version of the RB5009 has all the
bells and whistles of the previous model: Gigabit Ethernet, 2.5 Gigabit
Ethernet, and a 10 Gigabit SFP+ cage for fiber connectivity. It has the speed,
the power, and the durability. But this time, we have added PoE-in &
PoE-out on all eight Ethernet ports. Combined with the 2-pin connector and
the DC jack, you’re getting 10 separate ways of powering. Dual redundant
power supplies would usually take your uninterrupted uptime to the next
level. RB5009UPr+S+IN takes it one step above that! All power options support a wide voltage
range of 24 – 57 V. However, you can not mix the voltages. If you’re using
PoE-out to power other devices, the board will choose the source with the
highest voltage (DC jack or the 2-pin connector) to power those. Each PoE-out port can supply up to 25W of
power. All the ports combined are limited to 130W, which should be enough for
most setups. You can specify maximum available power from your power sources
manually, if necessary. When it comes to PoE-out features, the new RB5009 can
trade blows with our legendary PoE switches: CRS354 & CRS328. In the
smallest possible form-factor and for the best price on the market! Protect your uptime, protect your
tranquility! So what exactly happens
if there is a problem with one of your power sources? Here’s a quick example:
you have 24V on the DC jack, 48V on the 2-pin connector, and 57V on the
PoE-in. The board itself gets powered by the highest voltage input – the
PoE-in. If there’s a problem, RB5009 will fall back to the second highest
voltage – the 2-pin connector. And if that fails – there’s the 24V option on
the DC jack. What about the PoE-out
devices? Once again – the highest voltage wins. PoE-out devices will draw
power from the 48V source on the 2-pin connector. If that fails – the 24V on
the DC jack come into play. The board will always reserve 20 watts to power
itself. If there is not enough power for all the PoE-out ports, it will start
disabling the ones with the lowest priority. You can set the port priority
manually. This tiny form-factor shines
anywhere: from confined research facilities and offices to huge corporate
server rooms. And don’t forget that you can mount FOUR of these routers in a
single 1U rackmount space With the new
RB5009, we want to empower all the small and medium ISPs that are always on
the lookout for the most cost-effective and robust solutions. It is a perfect
addition to our previous GPEN devices – a line of products designed to
replace the expensive GPON solutions.
With so many powering options and a durable metallic case, the new
RB5009 redefines affordable reliability.
*802.3af/at PoE-In only on Ether1!
Specifications
Gallery Test results
Specifications RB5009UPr+S+IN Architecture ARM 64bit CPU 88F7040 CPU core
count 4 CPU nominal frequency 350-1400 (auto) MHz Switch chip model 88E6393
RouterOS license 5 Operating System RouterOS v7 Size of RAM 1 GB Storage
size 1 GB Storage type NAND MTBF Approximately 200’000 hours at 25C Tested
ambient temperature -40°C to 60°C IPsec hardware acceleration Yes Suggested
price $299.00 Powering Details Number of DC inputs 3 (DC jack, PoE-IN, 2-pin
terminal) DC jack input Voltage 24-57 V 2-pin terminal input Voltage 24-57 V
Max power consumption 150 W Max power consumption without attachments 16 W
Cooling type Passive PoE in 802.3af/at (ether1), Mode B (ether2-ether8) PoE
in input Voltage 24-57 V PoE-out Details PoE-out ports Ether1-Ether8 PoE
out 802.3af/at Max out per port output (input 18-30 V) 900 mA Max out per
port output (input 30-57 V) 440 mA Max total out (A) 2.59 A Total output
current 2.28 Total output power 130 Ethernet Details 10/100/1000 Ethernet
ports 7 Number of 1G Ethernet ports with Reverse PoE (PoE-in) 7 Number of
2.5G Ethernet ports 1 Number of 2.5G Ethernet ports with Reverse PoE
(PoE-in) 1 Fiber Details SFP+ ports 1 Peripherals Details Number of USB
ports 1 USB Power Reset Yes USB slot type USB 3.0 type A Max USB current
(A) 1.5 Other Details CPU temperature monitor Yes Current Monitor Yes PCB
temperature monitor Yes Voltage Monitor Yes Certification & Approvals
Details Certification CE, EAC, ROHS IP 20 Included parts K-55 screw kit IEC cord
48V2A96W Connector plug The device has an operating system
preinstalled and licensed. No separate purchase is necessary and the product
is ready to use. The device includes free software updates for the life of
the product or a minimum of 5 years starting from date of purchase.. Related products XS+2733LC15D $349
S-55DLC80D $39 RB5009/L009 rackmount kit K-79 $7
SolidRack 10 $49 S+AO0005
$49 XQ+BC0003-XS+ $79
S+RJ10 $65 XS+DA0003
$39 S-31DLC20D $29.00
XS+DA0001 $29 S-RJ01
$29.00 S+85DLC03D $59.00
S-85DLC05D $22.00 S-3553LC20D
$79.00 S-4554LC80D $89
